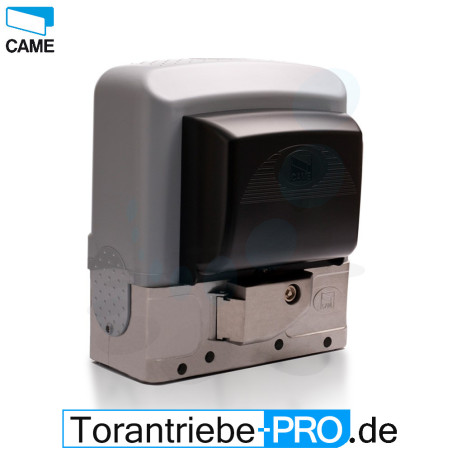

CAME BK 2200E Sliding Gate Motor
Rating
CAME BK 2200E is a 230 V sliding gate motor with built-in encoder that can automate gates wide up to 13 m. The maximum weight is 2200 kg. It is designed for multi-user and public environments.
Description
CAME BK 2200E is a 230 V sliding gate motor with built-in encoder that can automate gates wide up to 13 m. The maximum weight is 2200 kg. It is designed for multi-user and public environments.
| BASIC INFORMATION | |
| Motor power supply | 230V |
| Leaf maximum width | 13 m |
| Leaf maximum weight | 2200 kg |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 V |
| Current draw | 5,1 A |
| Max Power | 580 W |
| Duty cycle | 50% |
| Traction force | 1500 N |
| Motor thermal protection | 150°C |
| Speed (m/min) | 10,5 m/min |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 54 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | yes |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Partial opening function: | yes |
| Electrolock connection | ? |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |
Product Details
C_BK2200E
5901698642389
Data sheet
- Compositions
- 230 V
- max. Torbreite
- 20 m
- max. Torgewicht
- 2.200 kg
- max. Flügelgewicht
- elektromechanisch
- D-Maß
- 5,1 A
- Antriebstyp
- 580 W
- Versorgung
- 50%
- Schutzart
- 1500 N
IP 54 - Soft-Start / Soft-Stop
- 150 °C
ja - Geschwindigkeit
- 10,5 m/min
- Betriebstemperatur
- -20 - +55°C
- Selbsthemmend
- ja
- Endschalter für AUF
- ja
- Endschalter für ZU
- ja
- Enkoder
- ja
- Zweite Linie der Lichtschranken
- ja
- Teilöffnungsfunktion
- ja
- Amperometrische Hinderniserkennung
- ja
- Individuelle Zeiteinstellung
- ja
- Individuelle Krafteinstellung
- ja
- Vorwarnzeit der Blinkleuchte
- ja
- Automatisches Schließen
- ja
- Sets
- Einzelantriebe
- Torbreite
- 500 kg
- Torgewicht
- 2.200 kg
