CAME KRONO 300 Swing Gate Motor

C_KR300
Rating

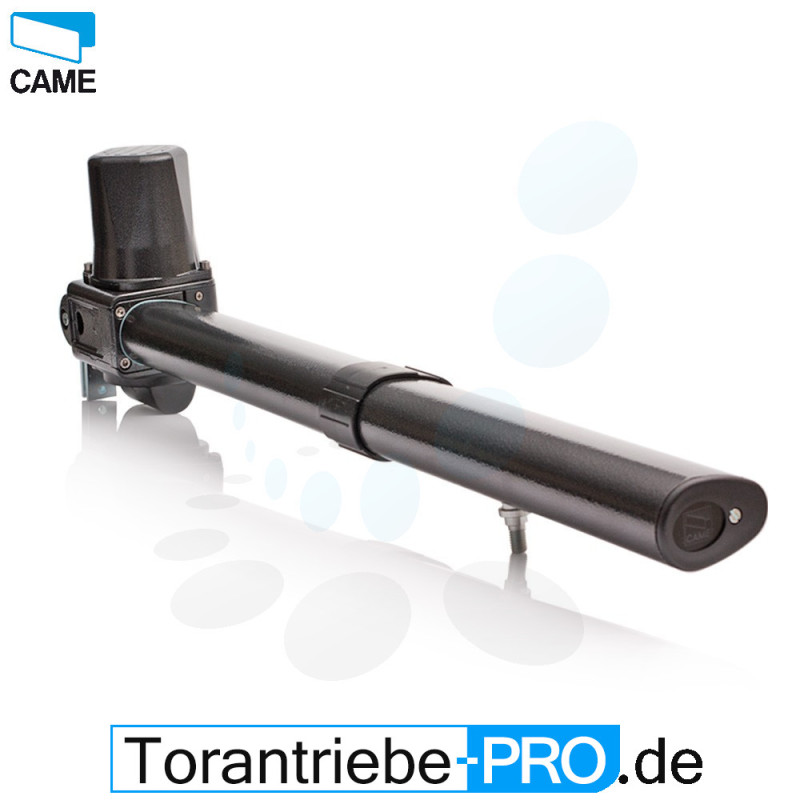

CAME KRONO 300 is a motor for swing gates wide up to 3 m. The maximum weight is 800 kg per leaf. It is an ideal solution for prestigious gates – it integrates aesthetics, harmony, and functionality. The KRONO 300 version doesn't have limit switches, the 310 version has limit switches on both opening and closing position of the gate.

€397.00
Tax included
Quantity

Description

CAME KRONO 300 is a motor for swing gates wide up to 3 m. The maximum weight is 800 kg per leaf. It is an ideal solution for prestigious gates – it integrates aesthetics, harmony, and functionality. The KRONO 300 version doesn't have limit switches, the 310 version has limit switches on both opening and closing position of the gate.

BASIC INFORMATION
Motor power supply 230V
Leaf maximum width  3 m
Leaf maximum weight  800 kg
D-Dimension  5 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  1,1 A
Max Power  130 W
Duty cycle  30%
Traction force  3000 Nm
Motor thermal protection  150°
Opening time (90°)  22 s
Maximum opening angle  120°
Operating temperature  -20° + 50°C
Protection rating  IP 54
Self-locking  yes
Limit switches for opening  no
Limit switches for closing  no
Encoder  no
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  no
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  no/no





Product Details
CAME
C_KR300
5901698643935

Data sheet

Height
3 - 5 m
Width
800 kg
Depth
1 Flügel
Weight
Spindelantrieb
Compositions
230 V
Styles
3 m
Properties
800 kg
max. Flügelbreite
5 cm
max. Flügelgewicht
elektromechanisch
D-Maß
1,1 A
Antriebstyp
130 W
Versorgung
30 %
Schutzart
3000 N
IP 54
Soft-Start / Soft-Stop
150 °C
Öffnungszeit bis 90°
22 s
max. Öffnungswinkel
120°
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
nein
Endschalter für ZU
nein
Enkoder
nein
Sets
Einzelantriebe
