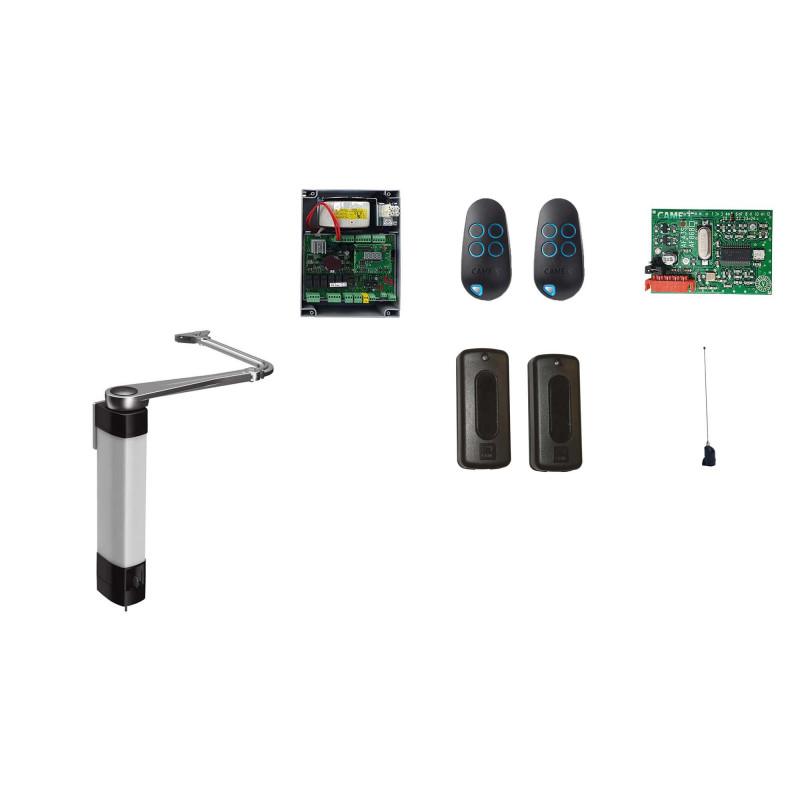

CAME STYLO/1 Swing Gate Motor 24V - Kit M

CAME STYLO

Sofort lieferbar

CAME STYLO is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 1,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices. Thanks to low voltage this motor is perfect for intesive use. This motor has an encoder.

More details

C_STYLO/1_M

STYLO/1 Swing Gate Motor 24V - Kit M

747,00 €

Add Subtract

Add to my wishlist

CAME STYLO is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 1,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 15 cm of distance between the gate pivot and the gate mounting of the motor is allowed. Thanks to low voltage this motor is perfect for intesive use. This motor has an encoder.

BASIC INFORMATION
Motor power supply  24V
Leaf maximum width  1,8 m
Leaf maximum weight  150 kg
D-Dimension  15 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/24 V
Current draw  5 A
Max Power  48 W
Duty cycle  intensive
Traction force  540 Nm
Motor thermal protection  -
Opening time (90°)  adjustable
Maximum opening angle  90°
Operating temperature  -20° + 50°C
Protection rating  IP 54
Self-locking  yes
Limit switches for opening  no
Limit switches for closing  no
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  no
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes/yes

  • Compositions

    24 V
  • Styles

    1,8 m
  • max. Flügelbreite

    15 cm
  • max. Flügelgewicht

    elektromechanisch
  • D-Maß

    5
  • Antriebstyp

    48 W
  • Versorgung

    intensiv
  • Schutzart

    100 Nm
  • Soft-Start / Soft-Stop

    -
  • Öffnungszeit bis 90°

    einstellbar
  • max. Öffnungswinkel

    90°
  • Betriebstemperatur

    -20 - +55°C
  • Schutzart

    IP 54
  • Selbsthemmend

    ja
  • Endschalter für AUF

    nein
  • Endschalter für ZU

    nein
  • Enkoder

    ja
  • Zweite Linie der Lichtschranken

    ja
  • Teilöffnungsfunktion

    ja
  • Anschluss vom Elektroschloss

    ja
  • Amperometrische Hinderniserkennung

    ja
  • Individuelle Zeiteinstellung

    ja
  • Individuelle Krafteinstellung

    ja
  • Vorwarnzeit der Blinkleuchte

    ja
  • Automatisches Schließen

    ja
  • Soft-Start / Soft-Stop

    ja

Write your review

CAME STYLO/1 Swing Gate Motor 24V - Kit M

CAME STYLO/1 Swing Gate Motor 24V - Kit M

CAME STYLO is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 1,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices. Thanks to low voltage this motor is perfect for intesive use. This motor has an encoder.
