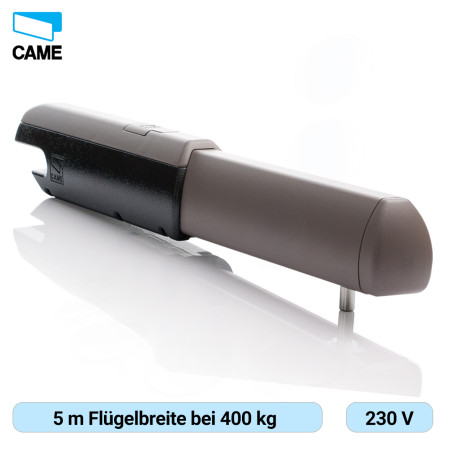

CAME ATI A5000A Swing gate motor 230V

CAME ATI

Sofort lieferbar

Came ATI A5000A is a powerful and sturdy electromechanical motor.It can handle a swing gate of up to 5m in width or weighing up to 1000 kg.

More details

C_A5000A

ATI A5000A Swing gate motor 230V

387,00 €

Add Subtract

Add to my wishlist

Came ATI A5000A is a powerful and sturdy electromechanical motor.It can handle a swing gate of up to 5m in width or weighing up to 1000 kg.

ATI range of motors has been developed to provide maximum usability and reliability, thanks to the precise attention to deatils and high quality.

BASIC INFORMATION
Motor power supply 230
Leaf maximum width  5 m
Leaf maximum weight  1000 kg
D-Dimension  12 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230
Current draw  1,2 A
Max Power  150W
Duty cycle  50%
Traction force  3000 N
Motor thermal protection  150 °C
Opening time (90°)  19 s
Maximum opening angle  120°
Operating temperature  -20 - +55°C
Protection rating  IP44
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  no



The kit contains:
- 1 x Came ATI A5000A motor
- Operating manual
- Invoice (the price incl. 19% tax)

  • Compositions

    230 V

  • Styles

    4,5 m

  • Properties

    1000 kg

  • max. Flügelbreite

    12 cm

  • max. Flügelgewicht

    elektromechanisch

  • D-Maß

    1.2 A

  • Antriebstyp

    150 W

  • Versorgung

    50%

  • Schutzart

    3000 N

  • Soft-Start / Soft-Stop

    150 °C

  • Öffnungszeit bis 90°

    32 s

  • max. Öffnungswinkel

    120°

  • Betriebstemperatur

    -20 - +55°C

  • Schutzart

    IP 44

  • Selbsthemmend

    ja

  • Endschalter für AUF

    ja

  • Endschalter für ZU

    ja

  • Enkoder

    nein
