Came JET5 Kit M contains 2 motors Came ATI A5000A which is powerful and sturdy.It can handle a swing gate of up to 5m in width or weighing up to 1000 kg. In Kit M you will find a control board, photocells, 2 remote controls.
Came JET5 Kit M contains 2 motors Came ATI A5000A which is powerful and sturdy.It can handle a swing gate of up to 5m in width or weighing up to 1000 kg. In Kit M you will find a control board, photocells, 2 remote controls.
ATI range of motors has been developed to provide maximum usability and reliability, thanks to the precise attention to deatils and high quality.
| BASIC INFORMATION | |
| Motor power supply | 230 |
| Leaf maximum width | 5 m |
| Leaf maximum weight | 1000 kg |
| D-Dimension | 6 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 |
| Current draw | 1,2 A |
| Max Power | 150W |
| Duty cycle | 50% |
| Traction force | 3000 N |
| Motor thermal protection | 150 °C |
| Opening time (90°) | 19 s |
| Maximum opening angle | 120° |
| Operating temperature | -20 - +55°C |
| Protection rating | IP44 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | no |
| Running time adjustment | yes |
| Force adjustment | ? |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | ? |
| Limits to use | |||||
| Max gate leaf width (m) | 5 | 6 | 3 | 2,5 | 2 |
| Max gate leaf weight (Kg) | 400 | 500 | 600 | 800 | 1000 |
ZA3N Control board functions:
The command modes that may be defined:
After detecting an obstacle the photocells (not included in this kit) can:

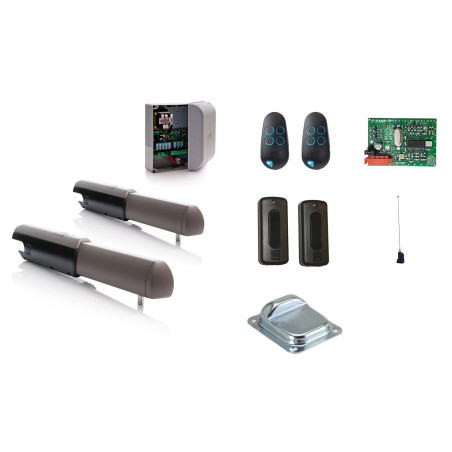

| This kit contains: |
| - 2 x Came ATI A5000A motor - 1 x Control unit ZA3N - 1 x Frequency card TAF43S - 2 x Came Top 432EV remote - 1 x Pair of Came DELTA-E photocells - 1 x Atenna A433 - 1 x Manual - 1 x Invoice (19% of tax incl.) |
