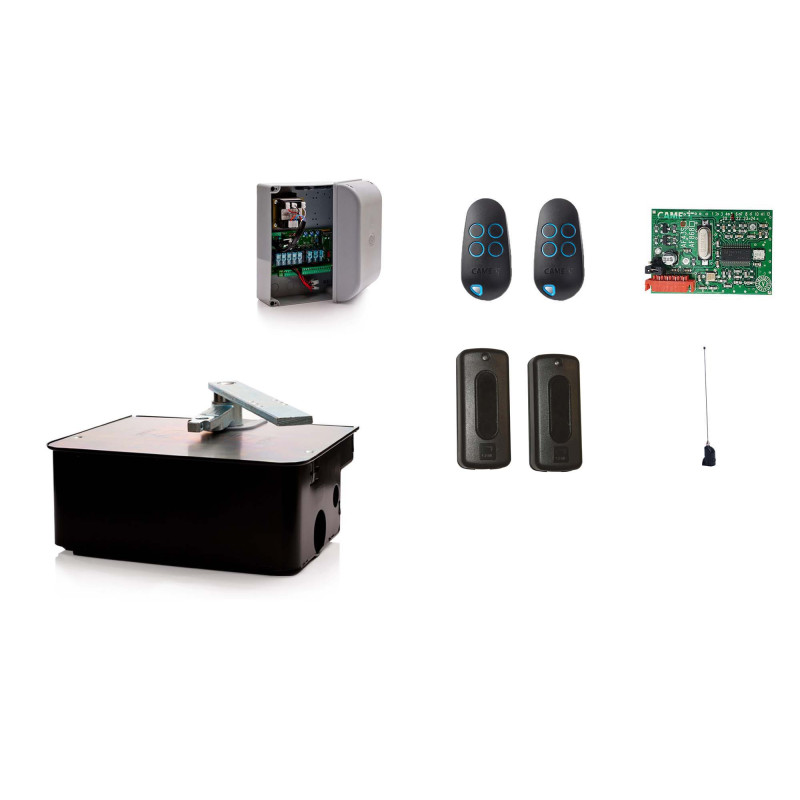

CAME FROG AE/1 Underground 230V motor - Kit M
Rating
FROG AE is an underground 230V motor for larger gates up to 3,5 m. The maximum weight is 800 kg (for max. 2 m). The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile. This version of FROG has a built-in encoder.
Description
FROG AE is an underground 230V motor for larger gates up to 3,5 m. The maximum weight is 800 kg (for max. 2 m). The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile. This version of FROG has a built-in encoder.
| BASIC INFORMATION | |
| Motor power supply | 230V |
| Leaf maximum width | 3,5 m |
| Leaf maximum weight | 800 kg |
| D-Dimension | unlimited |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 V |
| Current draw | 1,9 A |
| Max Power | 200 W |
| Duty cycle | 30% |
| Traction force | 320 Nm |
| Motor thermal protection | 150°C |
| Opening time (90°) | 18 s |
| Maximum opening angle | 180° (with lever) |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 67 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | yes |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |
Product Details
C_FROGAE/1_M
5901698642877
Data sheet
- Height
- 3,5 m
- Width
- 800 kg
- Depth
- 1 Flügel
- Weight
- Unterflurantrieb
- Compositions
- 230 V
- Styles
- 3,5 m
- Properties
- 800 kg
- max. Flügelbreite
- unbeschränkt
- max. Flügelgewicht
- elektromechanisch
- D-Maß
- 1,9 A
- Antriebstyp
- 200 W
- Versorgung
- 30 %
- Schutzart
- 320 Nm
IP 67 - Soft-Start / Soft-Stop
- 150 °C
ja - Öffnungszeit bis 90°
- 18 s
- max. Öffnungswinkel
- 180° (mit Sonderbeschlag)
- Betriebstemperatur
- -20° + 50°C
- Selbsthemmend
- ja
- Endschalter für AUF
- ja
- Endschalter für ZU
- ja
- Enkoder
- ja
- Zweite Linie der Lichtschranken
- ja
- Teilöffnungsfunktion
- ja
- Anschluss vom Elektroschloss
- ja
- Amperometrische Hinderniserkennung
- ja
- Individuelle Zeiteinstellung
- ja
- Individuelle Krafteinstellung
- ja
- Vorwarnzeit der Blinkleuchte
- ja
- Automatisches Schließen
- ja
