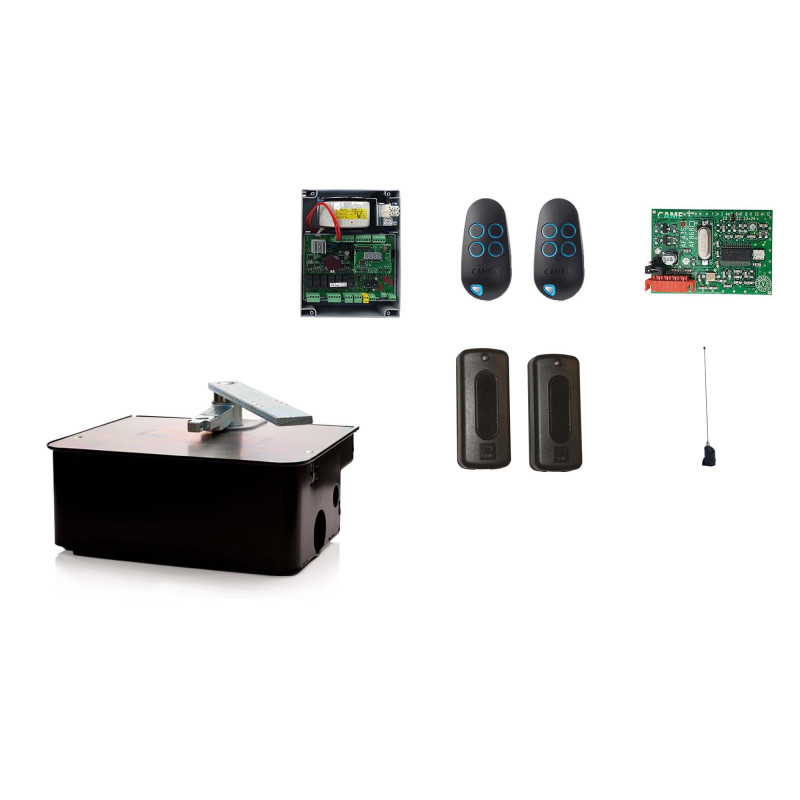

CAME FROG A24E/1 Underground 24V motor - Kit M

C_FROGA24E/1_M
Rating

FROG A24E is an underground 24V motor with built-in decoder for larger gates  up to 3,5 m. The maximum weight is 800 kg (for max. 2 m). The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile. The low voltage allows reliable and safe functionning.

This pack contains

€1,327.00
Quantity

Description

FROG A24E is an underground 24V motor with built-in decoder for larger gates  up to 3,5 m. The maximum weight is 800 kg (for max. 2 m). The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile. The low voltage allows reliable and safe functionning.

BASIC INFORMATION
Motor power supply  24V
Leaf maximum width  3,5 m
Leaf maximum weight  800 kg
D-Dimension  unlimited
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/24 V
Current draw  15 A
Max Power  180 W
Duty cycle  intensive
Traction force  320 Nm
Motor thermal protection  -
Opening time (90°)  adjustable 16-45 s
Maximum opening angle  180° (with lever)
Operating temperature  -20° + 50°C
Protection rating  IP 67
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes/yes
Product Details
CAME
C_FROGA24E/1_M
5901698642785

Data sheet

Height
3,5 m
Width
800 kg
Depth
1 Flügel
Weight
Unterflurantrieb
Compositions
24 V
Styles
3,5 m
Properties
800 kg
max. Flügelbreite
unbeschränkt
max. Flügelgewicht
elektromechanisch
D-Maß
15 A
Antriebstyp
180 W
Versorgung
intensiv
Schutzart
320 Nm
IP 67
Öffnungszeit bis 90°
einstellbar, 16s - 45s
max. Öffnungswinkel
180° (mit Sonderbeschlag)
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
ja
Zweite Linie der Lichtschranken
ja
Teilöffnungsfunktion
ja
Anschluss vom Elektroschloss
ja
Amperometrische Hinderniserkennung
ja
Individuelle Zeiteinstellung
ja
Individuelle Krafteinstellung
ja
Vorwarnzeit der Blinkleuchte
ja
Automatisches Schließen
ja
Soft-Start / Soft-Stop
ja
