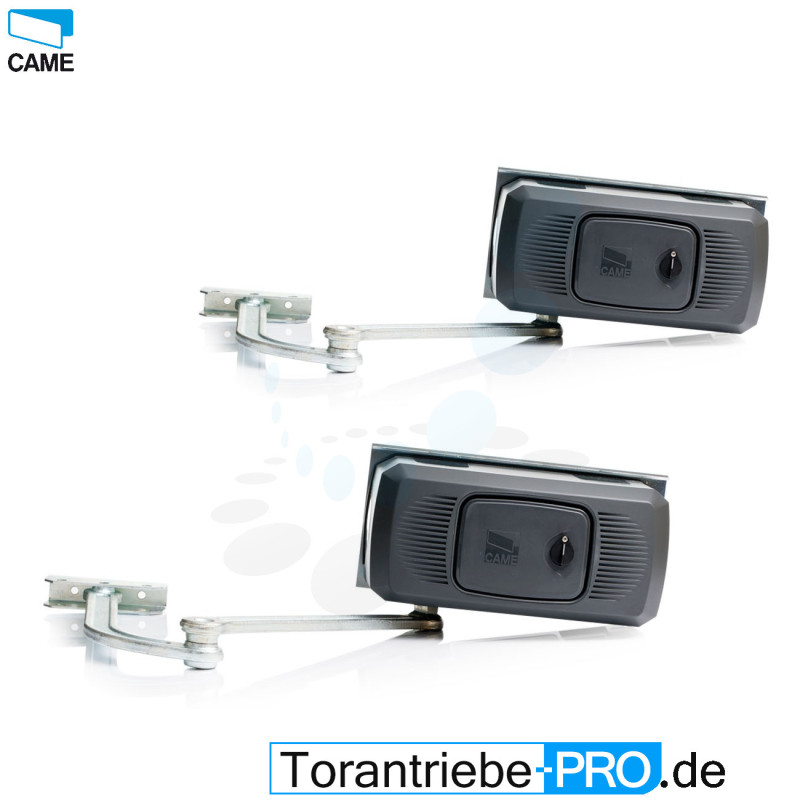

CAME FERNI 1000 Swing Gate Motor 230V
  • CAME FERNI 1000 Swing Gate Motor 230V
  • CAME FERNI 1000 Swing Gate Motor 230V

CAME FERNI 1000 Swing Gate Motor 230V

C_2xFERNI1000
Rating

CAME FERNI F1000 is a reliable electromechanical operator designed for swing gates with leaves up to 3,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed.

€1,257.00
Tax included
Quantity

Description

CAME FERNI F1000 is a reliable electromechanical operator designed for swing gates with leaves up to 3,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed.

BASIC INFORMATION
Motor power supply 230V
Leaf maximum width  3,8 m
Leaf maximum weight  800 kg
D-Dimension  38 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  1,3 A
Max Power  150 W
Duty cycle  30 %
Traction force  320 Nm
Motor thermal protection  120 °C
Opening time (90°)  18 s
Maximum opening angle  90°
Operating temperature  -20° + 50°C
Protection rating  IP 54
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  no
Running time adjustment  yes
Force adjustment  no
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  no
Product Details
CAME
C_2xFERNI1000
5901698644154

Data sheet

Height
3,8 m
Width
800 kg
Depth
2 Flügel
Weight
Gelenkarmantrieb
Compositions
230 V
Styles
3,8 m
Properties
800 kg
max. Flügelbreite
38 cm
max. Flügelgewicht
elektromechanisch
D-Maß
1,3 A
Antriebstyp
150 W
Versorgung
30 %
Schutzart
320 Nm
IP 54
Soft-Start / Soft-Stop
150 °C
Öffnungszeit bis 90°
18 s
max. Öffnungswinkel
90°
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
nein
Sets
Antriebe im Set
Reviews
Write your review

Write your review

CAME FERNI 1000 Swing Gate Motor 230V

CAME FERNI 1000 Swing Gate Motor 230V

CAME FERNI F1000 is a reliable electromechanical operator designed for swing gates with leaves up to 3,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed.
