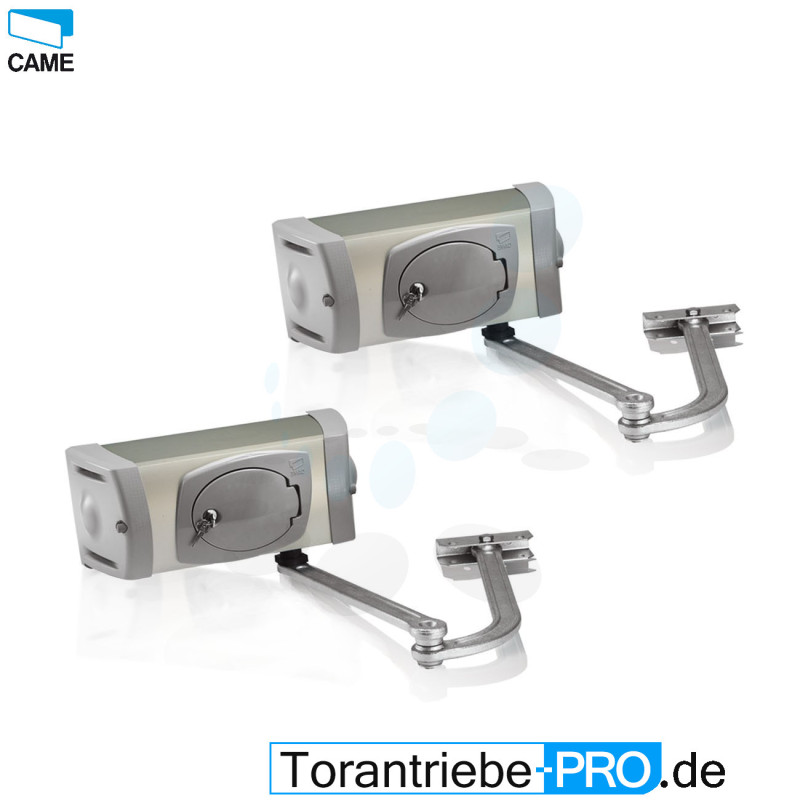

CAME FERNI 40230 Swing Gate Motor 230V
Rating
CAME FERNI F40230 is a reliable electromechanical operator designed for swing gates with leaves up to 3,8 m wide. This new version of Ferni in 230V has an amperometric sensor. It's the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed.
Description
CAME FERNI F40230 is a reliable electromechanical operator designed for swing gates with leaves up to 3,8 m wide. This new version of Ferni in 230V has an amperometric sensor. It's the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed.
| BASIC INFORMATION | |
| Motor power supply | 230V |
| Leaf maximum width | 3,8 m |
| Leaf maximum weight | 800 kg |
| D-Dimension | 38 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 V |
| Current draw | 1,3 A |
| Max Power | 140 W |
| Duty cycle | 30 % |
| Traction force | 540 Nm |
| Motor thermal protection | 150 °C |
| Opening time (90°) | 34 s |
| Maximum opening angle | 120° |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 54 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | yes |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |
Product Details
C_2xFERNI40230
5901698645748
Data sheet
- Height
- 3,8 m
- Width
- 800 kg
- Depth
- 2 FlΓΌgel
- Weight
- Gelenkarmantrieb
- Compositions
- 230 V
- Styles
- 3,8 m
- Properties
- 800 kg
- max. FlΓΌgelbreite
- 38 cm
- max. FlΓΌgelgewicht
- elektromechanisch
- D-MaΓ
- 1,3 A
- Antriebstyp
- 140 W
- Versorgung
- 30 %
- Schutzart
- 540 Nm
IP 54 - Soft-Start / Soft-Stop
- 150 Β°C
- Γffnungszeit bis 90Β°
- 34 s
- max. Γffnungswinkel
- 90Β°
- Betriebstemperatur
- -20Β° + 50Β°C
- Selbsthemmend
- ja
- Endschalter fΓΌr AUF
- ja
- Endschalter fΓΌr ZU
- ja
- Enkoder
- ja
- Sets
- Antriebe im Set
