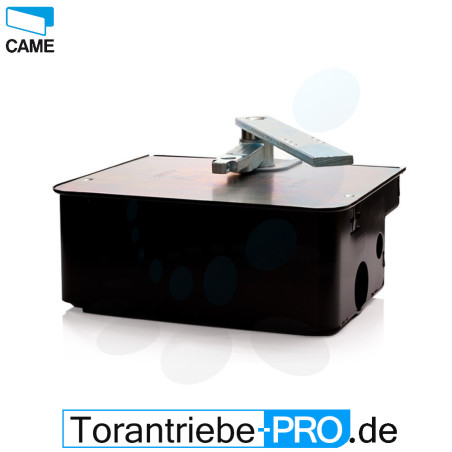

CAME FROG AV Underground motor with caising
  • CAME FROG AV Underground motor with caising
  • CAME FROG AV Underground motor with caising

CAME FROG AV Underground motor with caising

C_FROGAViW
Rating

FROG AV is an underground 230V motor for small gates up to 1,2 m. The maximum weight is 200 kg. This motor is a faster version of FROG - opening time to 90° is only 9 seconds. The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile.

€717.00
Tax included
Quantity

Description

FROG AV is an underground 230V motor for small gates up to 1,2 m. The maximum weight is 200 kg. This motor is a faster version of FROG - opening time to 90° is only 9 seconds. The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile.

BASIC INFORMATION
Motor power supply  230V
Leaf maximum width  1,2 m
Leaf maximum weight  200 kg
D-Dimension  unlimited
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  2,5 A
Max Power  300 W
Duty cycle  30%
Traction force  240 Nm
Motor thermal protection  150°C
Opening time (90°)  9 s
Maximum opening angle  180° (with lever)
Operating temperature  -20° + 50°C
Protection rating  IP 67
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  no
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  no
Running time adjustment  yes
Force adjustment  ?
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  ?/?





Product Details
CAME
C_FROGAViW
5901698641290

Data sheet

Height
1,2 m
Width
bis 200 kg
Depth
1 Flügel
Weight
Unterflurantrieb
Compositions
230 V
max. Flügelbreite
unbeschränkt
max. Flügelgewicht
elektromechanisch
D-Maß
2,5 A
Antriebstyp
300 W
Versorgung
30 %
Schutzart
240 Nm
IP 67
Soft-Start / Soft-Stop
150 °C
Öffnungszeit bis 90°
9 s
max. Öffnungswinkel
180° (mit Sonderbeschlag)
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
nein
Sets
Einzelantriebe
