Came AMICO A18230 is an electromechanical 230V self-locking motor that was designed to operate residential swing gates with a each leaf of up to 2,2 m in width (weighting 200kg), or weighting 250 kg (with maximum width 1m). Kit M contains control board, frequency card, 2 remote controls and a pair of photocells.
Came AMICO A18230 is an electromechanical 230V self-locking motor that was designed to operate residential swing gates with a each leaf of up to 2,2 m in width (weighting 200kg), or weighting 250 kg (with maximum width 1m). Kit M contains control board, frequency card, 2 remote controls and a pair of photocells.
| BASIC INFORMATION | |
| Motor power supply | 230V |
| Leaf maximum width | 2,2 m |
| Leaf maximum weight | 250 kg |
| D-Dimension | 6 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/24, 230/230, 230/400 |
| Current draw | 1,2 A |
| Max Power | 80 W |
| Duty cycle | 50% |
| Traction force | 2000 N |
| Motor thermal protection | 150°C |
| Opening time (90°) | 19 s |
| Maximum opening angle | 130° |
| Operating temperature | -20 - +55°C |
| Protection rating | IP44 |
| Self-locking | yes |
| Limit switches for opening | mechanical |
| Limit switches for closing | mechanical |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | no |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | no |
| Limits to use | |||
| Gate leaf width (m) | 2,2 | 1,5 | 1 |
| Gate leaf weight (kg) | 200 | 215 | 250 |
ZA3N Control board functions:
The command modes that may be defined:
After detecting an obstacle the photocells (not included in this kit) can:

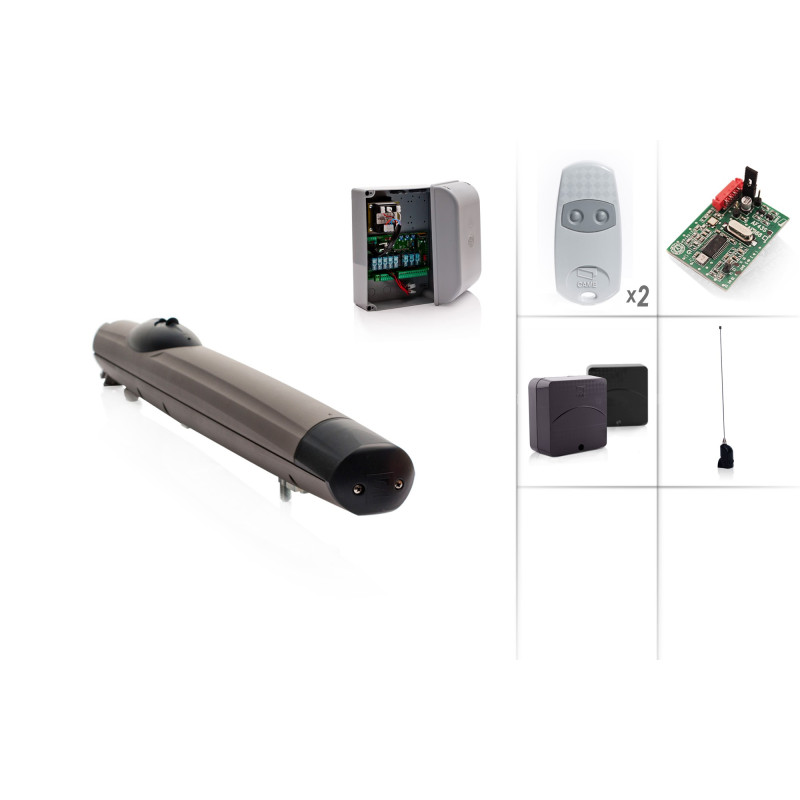

| This kit contains: |
| - 1 x Came AMICO operator - 1 x Control unit ZA3N - 1 x Frequency card TAF43S - 2 x Came Top 432EV remote - 1 x Pair of Came DELTA-E photocells - 1 x Antenna A433 - 1 x Manual - 1 x Invoice (19% of tax incl.) |
