CAME AMICO/1 Swing Gate Motor 24V - Kit M

CAME AMICO

Sofort lieferbar

Came AMICO A1824 is an electromechanical 24V self-locking motor that was designed to operate residential swing gates with a each leaf of up to 1,8 m in width (weighting 200kg), or weighting 250 kg (with maximum width 1m). Kit S contains control board, frequency card and a 1 remote control.

More details

Pack content

1 x CAME AMICO Swing Gate Motor 24V

Came AMICO A1824 is an electromechanical 24V self-locking motor that was designed to operate residential swing gates with a each leaf of up to 1,8 m in width (weighting 200kg), or weighting 250 kg (with maximum width 1m).

1 x Photocells CAME DELTA-E (surface-mounted)

CAME DELTA-E surface-mounted photocells with 20 m range

1 x Antenna CAME A433N

The CAME A433N antenna allows to widen the reach of radio devices

1 x Frequency card CAME AF43S

The frequency card CAME AF43S is used for all CAME devices: swing gates, sliding gates, barriers etc. It is necessary in order to connect radio control accessories

1 x Control board CAME ZL92

CAME ZL92 is a control board for 24V motors, it has a LED display panel. Thanks to the 24 V technology this control board ensures safety and reliability

1 x 2 Stck. Handsender CAME TOP 432 EE

C_AMICO24/1_M

AMICO/1 Swing Gate Motor 24V - Kit M

797,00 €

Add Subtract

Add to my wishlist

Came AMICO A1824 is an electromechanical 24V self-locking motor that was designed to operate residential swing gates with a each leaf of up to 1,8 m in width (weighting 200kg), or weighting 250 kg (with maximum width 1m). Kit S contains control board, frequency card and a 1 remote control.

BASIC INFORMATION
Motor power supply 24V
Leaf maximum width 1,8 m
Leaf maximum weight 250 kg
D-Dimension 6 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/24 V
Current draw max. 4 A
Max Power  100 W
Duty cycle  intensif work
Traction force  2000 N
Motor thermal protection  -
Opening time (90°)  adjustable
Maximum opening angle  130°
Operating temperature  -20 - +55°C
Protection rating  IP44
Self-locking  yes
Limit switches for opening  mechanical
Limit switches for closing  mechanical
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes



Limits to use
Gate leaf width (m) 1,8 1,5 1
Gate leaf weight (kg) 200 215 250

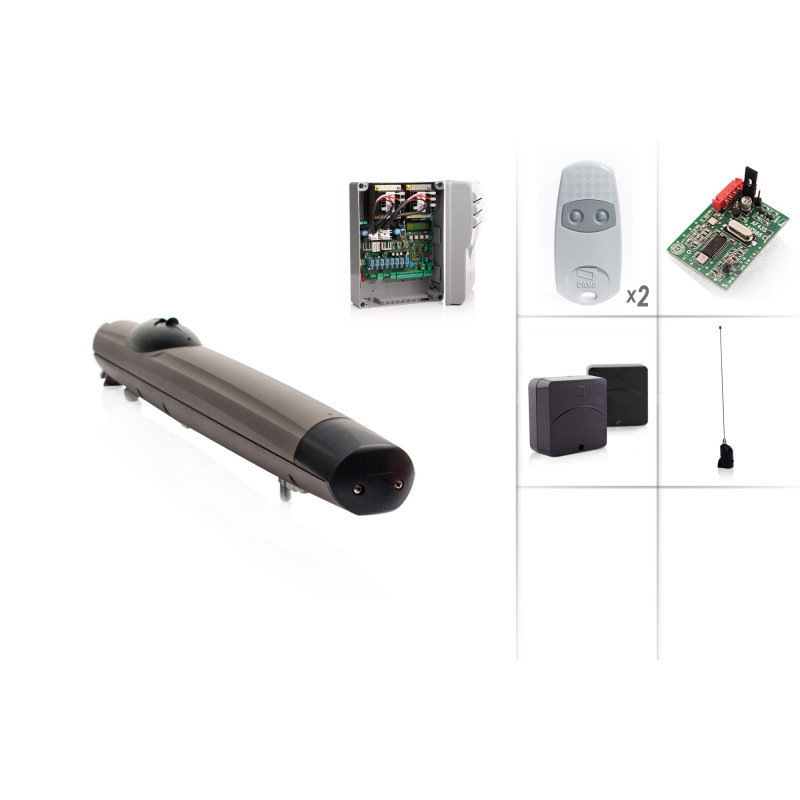

This kit contains:



- 1 x Came AMICO A1824 operator
- 1 x Control unit ZL92
- 1 x Frequency card TAF43S
- 2 x Came Top 432EV remote
- 1 x Pair of Came DELTA-E photocells
- 1 x Atenna Came A433
- 1 x Manual
- 1 x Invoice (19% of tax incl.)

  • Compositions

    24 V

  • Styles

    1,8 m

  • Properties

    250 kg

  • max. Flügelbreite

    6 cm

  • max. Flügelgewicht

    elektromechanisch

  • D-Maß

    max. 4 A

  • Antriebstyp

    100 W

  • Versorgung

    intensive Arbeit

  • Schutzart

    2000 N

  • Soft-Start / Soft-Stop

    150 °C

  • Öffnungszeit bis 90°

    einstellbar

  • max. Öffnungswinkel

    130°

  • Betriebstemperatur

    -20 - +55°C

  • Schutzart

    IP 44

  • Selbsthemmend

    ja

  • Endschalter für AUF

    mechanisch

  • Endschalter für ZU

    mechanisch

  • Enkoder

    ja

  • Zweite Linie der Lichtschranken

    ja

  • Teilöffnungsfunktion

    ja

  • Anschluss vom Elektroschloss

    ja

  • Amperometrische Hinderniserkennung

    ja

  • Individuelle Zeiteinstellung

    ja

  • Individuelle Krafteinstellung

    ja

  • Vorwarnzeit der Blinkleuchte

    ja

  • Automatisches Schließen

    ja

  • Soft-Start / Soft-Stop

    ja

Pack content

Write your review

CAME AMICO/1 Swing Gate Motor 24V - Kit M

CAME AMICO/1 Swing Gate Motor 24V - Kit M

Came AMICO A1824 is an electromechanical 24V self-locking motor that was designed to operate residential swing gates with a each leaf of up to 1,8 m in width (weighting 200kg), or weighting 250 kg (with maximum width 1m). Kit S contains control board, frequency card and a 1 remote control.
