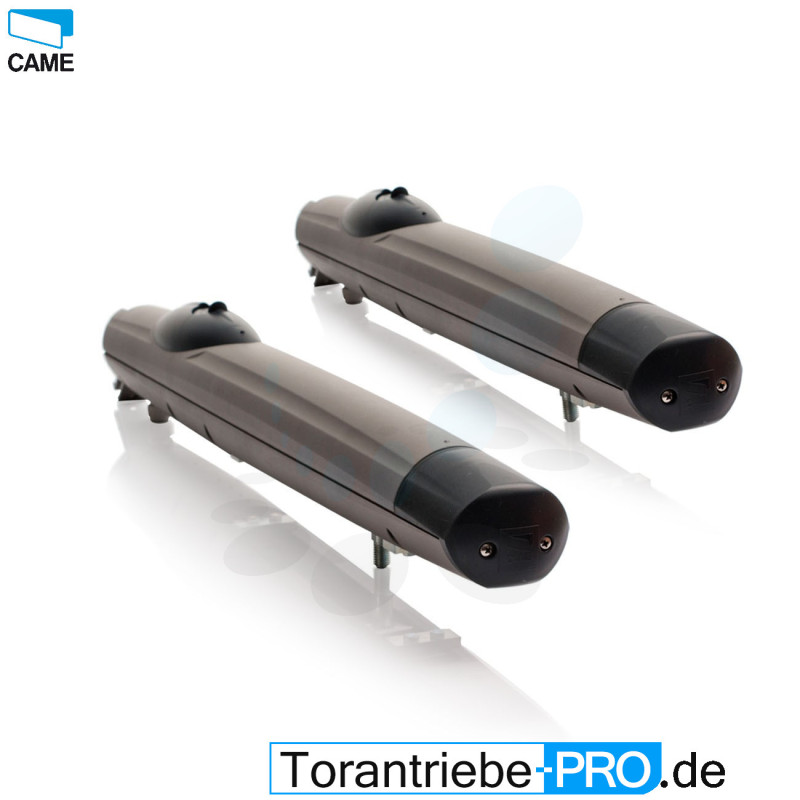

CAME AMICO Swing Gate Motor 230V
  • CAME AMICO Swing Gate Motor 230V

CAME AMICO Swing Gate Motor 230V

C_2xAMICO

Came AMICO A18230 is an electromechanical 230V self-locking motor that was designed to operate residential swing gates with a each leaf of up to 2,2 m in width (weighting 200kg), or weighting 250 kg (with maximum width 1m).

€847.00
Tax included
Quantity

Description

Came AMICO A18230 is an electromechanical 230V self-locking motor that was designed to operate residential swing gates with a each leaf of up to 2,2 m in width (weighting 200kg), or weighting 250 kg (with maximum width 1m).

BASIC INFORMATION
Motor power supply 230V
Leaf maximum width 2,2 m
Leaf maximum weight 250 kg
D-Dimension 6 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  1,2 A
Max Power  80 W
Duty cycle  50%
Traction force  2000 N
Motor thermal protection  150°C
Opening time (90°)  19 s
Maximum opening angle  130°
Operating temperature  -20 - +55°C
Protection rating  IP44
Self-locking  yes
Limit switches for opening  mechanical
Limit switches for closing  mechanical
Encoder  no
OTHER INFORMATION


B

Limits to use
Gate leaf width (m) 2,2 1,5 1
Gate leaf weight (kg) 200 215 250



This kit contains:
- 1 x Came AMICO A18230 operator
- 1 x Manual
- 1 x Invoice (19% tax incl.)



Product Details
CAME
C_2xAMICO
5901698610296

Data sheet

Height
2,2 m
Width
250 kg
Depth
2 Flügel
Weight
Spindelantrieb
Compositions
230 V
Styles
2,2 m
Properties
250 kg
max. Flügelbreite
6 cm
max. Flügelgewicht
elektromechanisch
D-Maß
1,2 A
Antriebstyp
80 W
Versorgung
50%
Schutzart
2000 N
IP 44
Soft-Start / Soft-Stop
150 °C
Öffnungszeit bis 90°
19 s
max. Öffnungswinkel
130°
Betriebstemperatur
-20 - +55°C
Selbsthemmend
ja
Endschalter für AUF
mechanisch
Endschalter für ZU
mechanisch
Enkoder
nein
Sets
Antriebe im Set
