CAME AXO5024/2 24V motor for swing gates - Kit M

CAME AXO

Sofort lieferbar

Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX5024 can operate on gates wide up to 5 m. The maximum weight is 1000 kg. The 24 V technology guarantees safety and long life.

More details

Pack content

1 x Photocells CAME DELTA-E (surface-mounted)

CAME DELTA-E surface-mounted photocells with 20 m range

1 x Antenna CAME A433N

The CAME A433N antenna allows to widen the reach of radio devices

1 x Frequency card CAME AF43S

The frequency card CAME AF43S is used for all CAME devices: swing gates, sliding gates, barriers etc. It is necessary in order to connect radio control accessories

1 x Control board CAME ZLJ24

CAME ZLJ24 is an external control board for 24V motors with encoder. ZLJ24 is the most advanced control board manufactured by CAME.

1 x CAME AXO AX5024 Swing gate motor 24V

Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX5024 can operate on gates wide up to 5 m. The maximum weight is 1000 kg. The 24 V technology guarantees safety and long life.

C_AX5024/2_M

AXO5024/2 24V motor for swing gates - Kit M

1 337,00 €

Add Subtract

Add to my wishlist

Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX5024 can operate on gates wide up to 5 m. The maximum weight is 1000 kg. The 24 V technology guarantees safety and long life.

BASIC INFORMATION
Motor power supply 24V
Leaf maximum width  5 m
Leaf maximum weight  1000 kg
D-Dimension  5 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/24 V
Current draw  10 A
Max Power  240 W
Duty cycle  intensive
Traction force  4500 N
Motor thermal protection  -
Opening time (90°)  adjustable
Maximum opening angle  120°
Operating temperature  -20° + 50°C
Protection rating  IP44
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes/yes

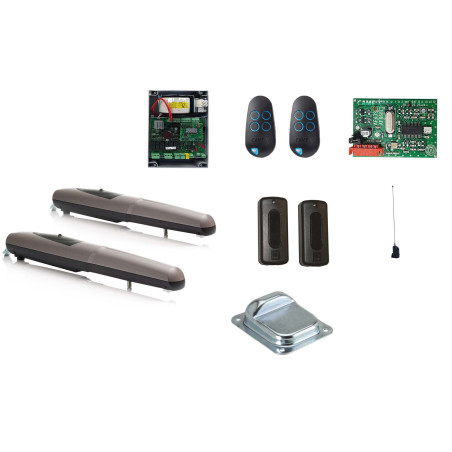

This kit contains
- 2 x Came AXO AX5024 motor
- 1 x Came unit ZLJ24
- 1 x Frequency card TAF43S
- 2 x Came Top 432EV remote
- 1 x Pair of Came DELTA-E photocells
- 1 x Atenna CAME A433
- 1 x Manual
- 1 x Invoice (19% of tax incl.)
  • Compositions

    24 V
  • Styles

    5 m
  • Properties

    1000 kg
  • max. Flügelbreite

    5 cm
  • max. Flügelgewicht

    elektromechanisch
  • D-Maß

    10 A
  • Antriebstyp

    240 W
  • Versorgung

    intensiv
  • Schutzart

    4500 N
  • Soft-Start / Soft-Stop

    -
  • Öffnungszeit bis 90°

    einstellbar
  • max. Öffnungswinkel

    120°
  • Betriebstemperatur

    -20° + 50°C
  • Schutzart

    IP 44
  • Selbsthemmend

    ja
  • Endschalter für AUF

    ja
  • Endschalter für ZU

    ja
  • Enkoder

    ja
  • Zweite Linie der Lichtschranken

    ja
  • Teilöffnungsfunktion

    ja
  • Anschluss vom Elektroschloss

    ja
  • Amperometrische Hinderniserkennung

    ja
  • Individuelle Zeiteinstellung

    ja
  • Individuelle Krafteinstellung

    ja
  • Vorwarnzeit der Blinkleuchte

    ja
  • Automatisches Schließen

    ja
  • Soft-Start / Soft-Stop

    ja

Pack content

Write your review

CAME AXO5024/2 24V motor for swing gates - Kit M

CAME AXO5024/2 24V motor for swing gates - Kit M

Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX5024 can operate on gates wide up to 5 m. The maximum weight is 1000 kg. The 24 V technology guarantees safety and long life.
