CAME AXO71230/2 230V motor for swing gates - Kit M

C_AX71230/2_M
Rating

Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX71230 can operate on gates wide up to 7 m. The maximum weight is 1000 kg.

This pack contains

€1,457.00
Tax included
Quantity

Description

Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX71230 can operate on gates wide up to 7 m. The maximum weight is 1000 kg.

This motor isn't  self-locking, therefore you will require an electric lock CAME LOCK 81 in order to block the gate in the closed position.

BASIC INFORMATION
Motor power supply 230V
Leaf maximum width  7 m
Leaf maximum weight  1000 kg
D-Dimension  5 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  1,5 A
Max Power  175 W
Duty cycle  30%
Traction force  4500 N
Motor thermal protection  150° C
Opening time (90°)  40 s
Maximum opening angle  120°
Operating temperature  -20° + 50°C
Protection rating  IP44
Self-locking  no
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes/yes

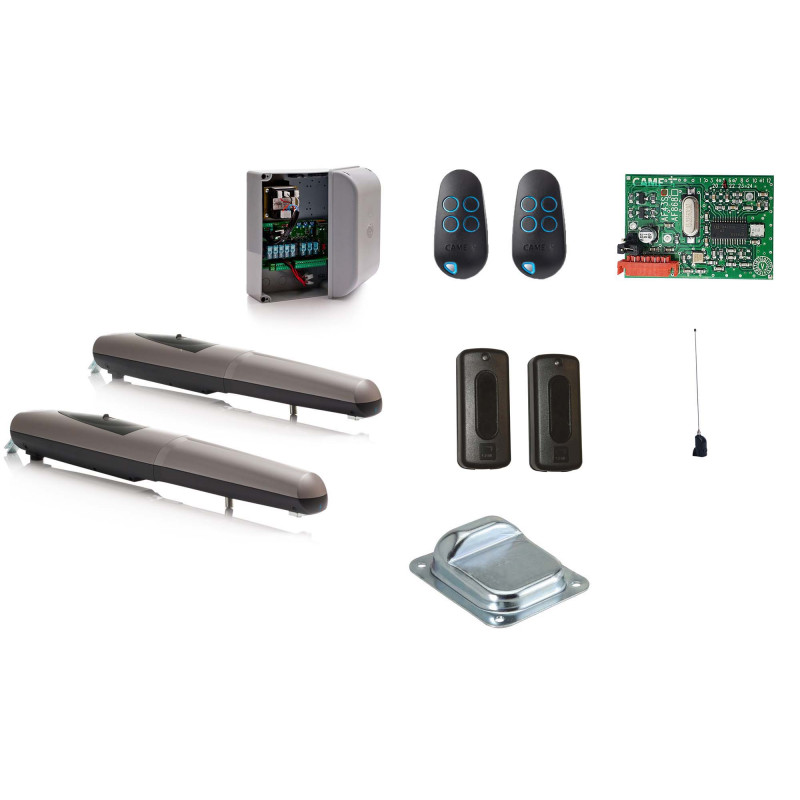

This kit contains
- 2 x Came AXO AX71230 motor
- 1 x Came unit ZM3E
- 1 x Frequency card TAF43S
- 2 x Came Top 432EV remote
- 1 x Pair of Came DELTA-E photocells
- 1 x Atenna CAME A433
- 1 x Manual
- 1 x Invoice (19% of tax incl.)
Product Details
CAME
C_AX71230/2_M
5901698643669

Data sheet

Height
6,5 m
Width
900 kg
Depth
2 Flügel
Weight
Spindelantrieb
Compositions
230 V
Styles
6,5 m
Properties
900 kg
max. Flügelbreite
5 cm
max. Flügelgewicht
elektromechanisch
D-Maß
1,5 A
Antriebstyp
175 W
Versorgung
30 %
Schutzart
4500 N
IP 44
Soft-Start / Soft-Stop
150 °C
ja
Öffnungszeit bis 90°
40 s
max. Öffnungswinkel
120°
Betriebstemperatur
-20° + 50°C
Selbsthemmend
nein
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
ja
Zweite Linie der Lichtschranken
ja
Teilöffnungsfunktion
ja
Anschluss vom Elektroschloss
ja
Amperometrische Hinderniserkennung
ja
Individuelle Zeiteinstellung
ja
Individuelle Krafteinstellung
ja
Vorwarnzeit der Blinkleuchte
ja
Automatisches Schließen
ja
Sets
Antriebe im Set
