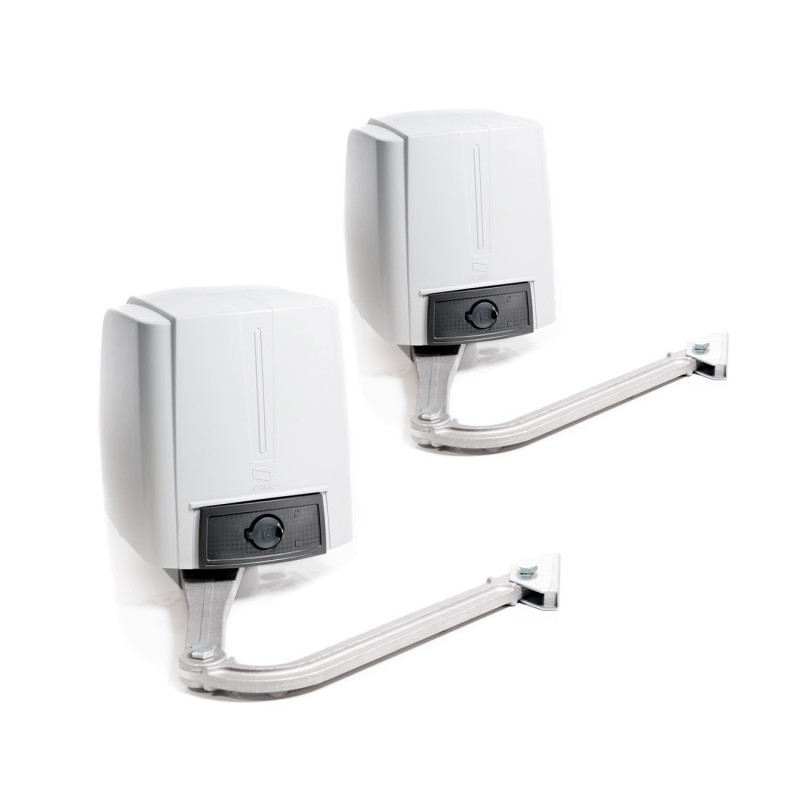

CAME FAST F7024 24V motor for swing gates
  • CAME FAST F7024 24V motor for swing gates

CAME FAST F7024 24V motor for swing gates

C_2xFAST7024

Came FAST F7024 is a reliable and usable operator designed for small residential swing gates with leaves of up to 2,3 m long or weighing up to 300 kg each leaf. The articulated arm is a perfect solution if your gate is mounted on large pilars.

€1,297.00
Tax included
Quantity

Description

Came FAST F7024 is a reliable and usable operator designed for small residential swing gates with leaves of up to 2,3 m long or weighing up to 300 kg each leaf. The articulated arm is a perfect solution if your gate is mounted on large pilars.

BASIC INFORMATION
Motor power supply 24V
Leaf maximum width  2,3 m
Leaf maximum weight  300 kg
D-Dimension  20 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/24 V
Current draw  11 A
Max Power  140W
Duty cycle  intensif
Traction force  180 Nm
Motor thermal protection  150 °C
Opening time (90°)  adjustable
Maximum opening angle  120 °
Operating temperature  -20° + 50 °C
Protection rating  IP 44
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  no



The kit contains:
- 1 x Came FAST F7024 motor (without the control board)
- 1 x Manual
- 1 x Invoice (19% of tax incl.)
Product Details
CAME
C_2xFAST7024
5901698643911

Data sheet

Height
2,3 m
Width
200 - 400 kg
Depth
2 Flügel
Weight
Gelenkarmantrieb
Compositions
24 V
Styles
2,3 m
Properties
300 kg
max. Flügelbreite
20 cm
max. Flügelgewicht
elektromechanisch
D-Maß
11 A
Antriebstyp
140 W
Versorgung
intensiv
Schutzart
180 Nm
IP 54
Soft-Start / Soft-Stop
150 °C
Öffnungszeit bis 90°
einstellbar
max. Öffnungswinkel
90°
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
nein
Sets
Antriebe im Set

EU manufacturer/responsible person

CAME S. p. A.
Via Martiri della Libertà 15
Dosson di Casier
31030 Italien

Phone: +3904224940
E-Mail: info@came.it
