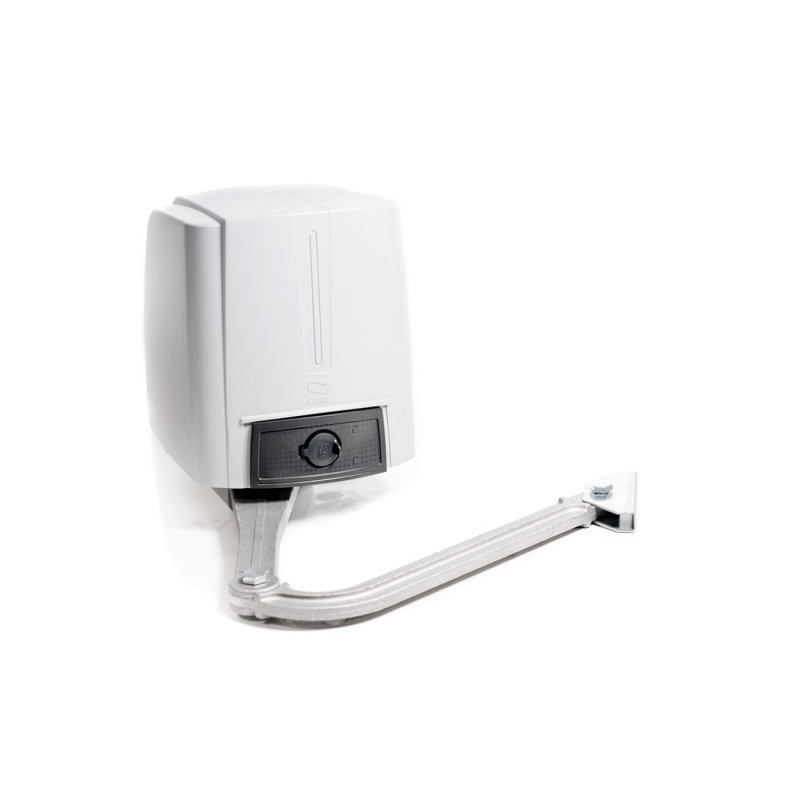

CAME FAST F7001 230V motor for swing gates
Rating
Came FAST F7001 is a reliable and usable operator designed for small residential swing gates with leaves of up to 2,3 m long or weighing up to 300 kg each leaf. The articulated arm is a perfect solution if your gate is mounted on large pilars.
Description
Came FAST F7001 is a reliable and usable operator designed for small residential swing gates with leaves of up to 2,3 m long or weighing up to 300 kg each leaf. The articulated arm is a perfect solution if your gate is mounted on large pilars.
| BASIC INFORMATION | |
| Motor power supply | 230V |
| Leaf maximum width | 2,3 m |
| Leaf maximum weight | 300 kg |
| D-Dimension | 20 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 V |
| Current draw | 1,4 A |
| Max Power | 160W |
| Duty cycle | 30% |
| Traction force | 180 Nm |
| Motor thermal protection | 150 °C |
| Opening time (90°) | 18 s |
| Maximum opening angle | 90 ° |
| Operating temperature | -20° + 50 °C |
| Protection rating | IP 54 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | no |
| Pedestrian passage function | no |
| Electrolock connection | yes |
| Amperometric sensor | no |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | no |
| Automatic closing | yes |
| Soft-stop, soft-start | no |
| The kit contains: |
| - 1 x Came FAST F7001 motor (without the control board) - 1 x Manual - 1 x Invoice (19% of tax incl.) |
Product Details
C_FAST7001
5901698641993
Data sheet
- Height
- 2,3 m
- Width
- 200 - 400 kg
- Depth
- 1 Flügel
- Weight
- Gelenkarmantrieb
- Compositions
- 230 V
- Styles
- 2,3 m
- Properties
- 300 kg
- max. Flügelbreite
- 20 cm
- max. Flügelgewicht
- elektromechanisch
- D-Maß
- 1,4 A
- Antriebstyp
- 160 W
- Versorgung
- 30 %
- Schutzart
- 180 Nm
IP 54 - Soft-Start / Soft-Stop
- 150 °C
- Öffnungszeit bis 90°
- 18 s
- max. Öffnungswinkel
- 90°
- Betriebstemperatur
- -20° + 50°C
- Selbsthemmend
- ja
- Endschalter für AUF
- ja
- Endschalter für ZU
- ja
- Enkoder
- nein
- Sets
- Einzelantriebe
