CAME FAST F7024/1 Swing Gate Motor 24V - Kit M

C_FAST7024/1_M
Rating

Came FAST F7024 is a reliable and usable operator designed for small residential swing gates with leaves of up to 2,3 m long or weighing up to 300 kg each leaf. The articulated arm is a perfect solution if your gate is mounted on large pilars.

This pack contains

€1,057.00
Tax included
Quantity

Description

Came FAST F7024 is a reliable and usable operator designed for small residential swing gates with leaves of up to 2,3 m long or weighing up to 300 kg each leaf. The articulated arm is a perfect solution if your gate is mounted on large pilars.

BASIC INFORMATION
Motor power supply 24V
Leaf maximum width  2,3 m
Leaf maximum weight  300 kg
D-Dimension  20 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/24 V
Current draw  11 A
Max Power  140W
Duty cycle  intensif
Traction force  180 Nm
Motor thermal protection  150 °C
Opening time (90°)  adjustable
Maximum opening angle  120 °
Operating temperature  -20° + 50 °C
Protection rating  IP 44
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  no
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  no
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  no
Automatic closing  yes
Soft-stop, soft-start  no

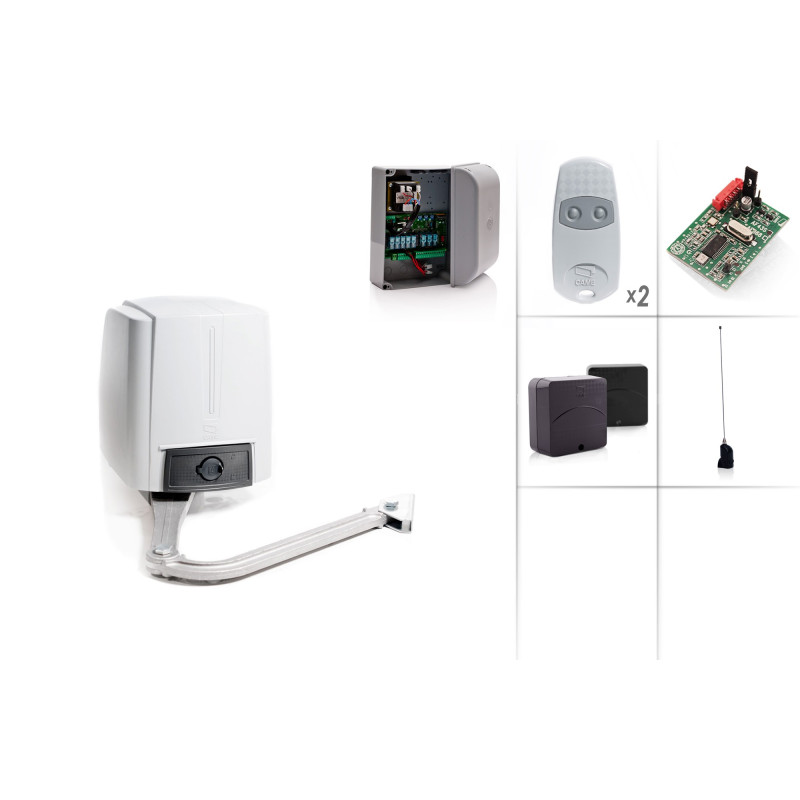

The kit contains:
- 1 x Came F7024 motor
- 1 x Came unit ZL170N
- 1 x Frequency card TAF43S
- 2 x Came Top 432EV remote
- 1 x Pair of Came DELTA-E photocells
- 1 x Atenna CAME A433
- 1 x Manual
- 1 x Invoice (19% of tax incl.)
Product Details
CAME
C_FAST7024/1_M
5901698642105

Data sheet

Height
2,3 m
Width
200 - 400 kg
Depth
1 Flügel
Weight
Gelenkarmantrieb
Compositions
24 V
Styles
2,3 m
Properties
300 kg
max. Flügelbreite
20 cm
max. Flügelgewicht
elektromechanisch
D-Maß
11 A
Antriebstyp
140 W
Versorgung
intensiv
Schutzart
180 Nm
IP 54
Soft-Start / Soft-Stop
150 °C
ja
Öffnungszeit bis 90°
einstellbar
max. Öffnungswinkel
90°
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
nein
Zweite Linie der Lichtschranken
ja
Teilöffnungsfunktion
nein
Anschluss vom Elektroschloss
ja
Amperometrische Hinderniserkennung
ja
Individuelle Zeiteinstellung
ja
Individuelle Krafteinstellung
-
Vorwarnzeit der Blinkleuchte
ja
Automatisches Schließen
ja
Sets
Antriebe im Set
